Cov Nta Tseem Ceeb
Interface hom:USB 2.0 Tag nrho - ceev (12 Mb / s) mus thaum Partel Fifo
Cov Ntaub Ntawv Tsheb Loj Dav:8-ntsis cov ntaub ntawv sib txuas + tswj cov cim sib tuav tes
Cov ntaub ntawv hla:Txog li 1 Mbyte / S raug (tag nrho-} ceev USB)
Hom Fifo:Asynchronous lossis synchronous fifo ua haujlwm
Cov Khoom Siv Hluav Taws Xob:4.35 v - 5.25 v (vcc)
I / O Voltage:1.8 v rau 3.3 v (nrog ua - hauv qib txav)
Cheebtsam sib xyaw:
USB Transceiver thiab cov kev txiav tawm
Ntawm -}} V REGULATOR
Sab hauv oscillator (tsis muaj sab nraud siv lead ua)
EEPROM rau cov ntaus ntawv configuration
Clock tsim tawm:Yeem 6 MHz, 12 MHz, lossis 48 MHz Moos
Ntws Tswj:Txi # (xa cov khoom lag luam) thiab RXF # (tau txais Fifo puv) cov cim
Kev Ua Haujlwm Kub:-40 Qib rau +85℃(muaj ntau)

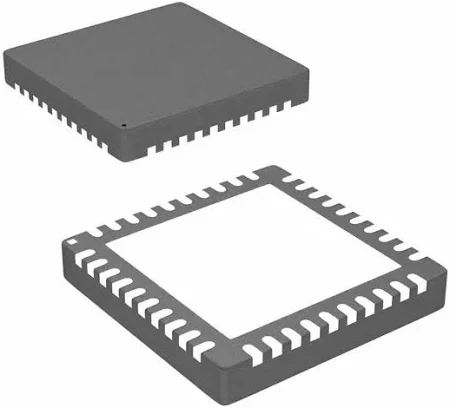

Pob:32 - PIN QFN (5 hli × 5 hli, ft245rq-reel denotes reel ntim)
RoHS / ncav cuag:Raws li thiab pb - dawb
Kev ua tau zoo thiab ua haujlwm tau zoo
Yooj yim patingel Fifface -} Tsis muaj USB firmware yuav tsum tau
Puv USB 1.1 / 2.0 Tag nrho- nrawm nrawm nrog Windows, Macos, Linux tsav tsheb
Siab sib xyaw USB raws tucolol cav
Txhawb tawm me ntsis -} bang hom rau ncaj qha gpio tswj ntawm USB
Cov lus piav qhia USB los ntawm EneProm sab hauv
Txhawb tus kheej - powered lossis npav -} powered configurations
Yeem usb ncua thiab tsim -} li nta
Cov Ntawv Thov
USB interface rau microcontrollers thiab FPGAS
Kev lag luam thiab ntsuas ntsuas
Cov Ntaub Ntawv Nrhiav Tau Lub Tshuab
USB -} Raws li kev tswj hwm lub cev
Embedded Systems thiab Kev Sib Txuas Lus
